GT01-900
Mini PC
Processor
Intel® Core i9-12900H
Base Frequency: 2.5 GHz
Turbo: up to 5.0 GHz
14 Cores / 20 Threads
Graphics
Intel Iris Xe Graphics
Memory
Options: 16GB or 32GB DDR4
Supports up to 64GB (2 slots)
Storage
1 × M.2 2280 PCIe 3.0 SSD
Options: 512GB or 1TB (Max: 1TB)
Wireless
Wi-Fi 6 (802.11 ax)
Bluetooth
Bluetooth 5.0
I/O Ports
2 × RJ-45 Ethernet Ports
1 × HDMI
1 × DisplayPort
1 × USB Type-C / Thunderbolt 4
4 × USB 3.2
1 × Audio Jack
1 × DC IN
Operating System
Supports Windows 10/11 Pro, Linux
Dimensions & Weight
130 × 127.5 × 52 mm
Weight: 0.53 kg
What's Included
Mini PC, AC Adapter, HDMI Cable, Manual

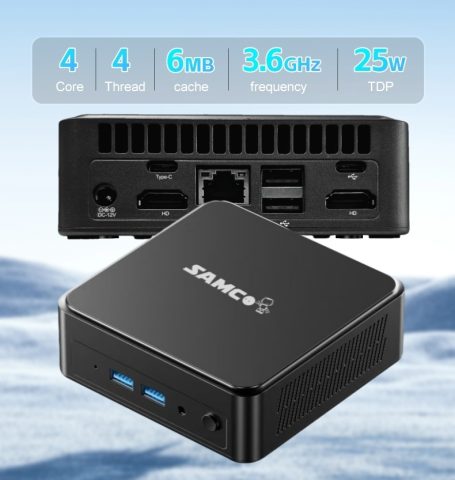

GB01-150
Mini PC
CPU
Intel® N150
4 Cores / 4 Threads
Base Frequency: 1.0 GHz | Turbo: up to 3.60 GHz
Memory
DDR4 SO-DIMM
Options: 8GB or 16GB (Max Capacity: 32 GB)
Storage
1 × M.2 2280 NVMe SSD
Options: 256GB or 512GB (Max: 1 TB)
Graphics & Video Output
Resolution: 4096 × 2034 @ 60Hz
2 × HDMI
USB Ports
2 × USB 3.0
2 × USB 2.0
2 × USB-C
Audio
1 × Headset Port
Communication
Wi-Fi 5
Bluetooth 4.2
1 × Gigabit Ethernet (RJ-45)
Operating System
Windows 11 Pro (Supports Ubuntu)
Dimensions & Weight
112 mm × 112 mm × 37 mm
Weight: 280 g
GT02-1300
Mini PC
CPU
- Intel® Core™ i5-1340P
- 12 Cores / 16 Threads
- Base Frequency: 1.9 GHz | Turbo: up to 4.6 GHz
- Integrated Graphics: Intel Iris Xe
Memory
- DDR4 SO-DIMM
- Max Capacity: 64 GB
Storage
- 1 × M.2 2280 NVMe PCIe 3.0 SSD
- Options: 512 GB / 1 TB (Max: 2 TB)
Graphics & Video Output
- 2 × HDMI 2.0
- 2 × DisplayPort 1.4
Communication
- Wi-Fi 6
- Bluetooth 5.2

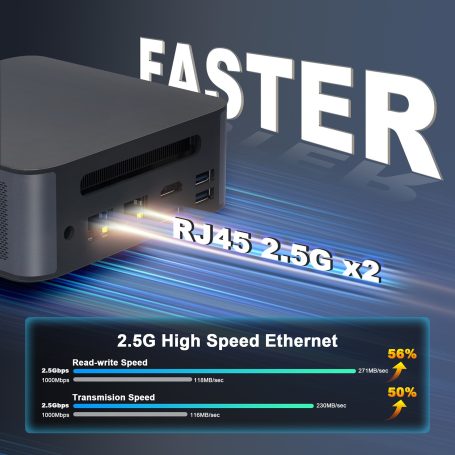

- 2 × RJ-45 (2.5G LAN)

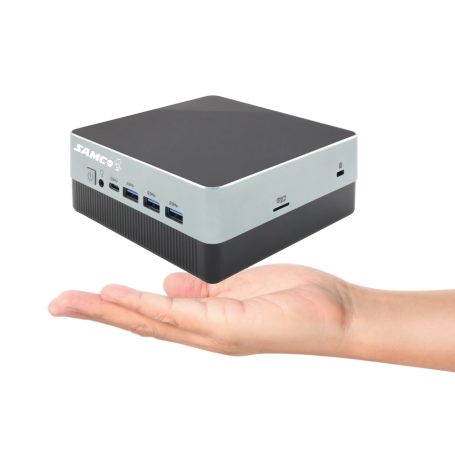

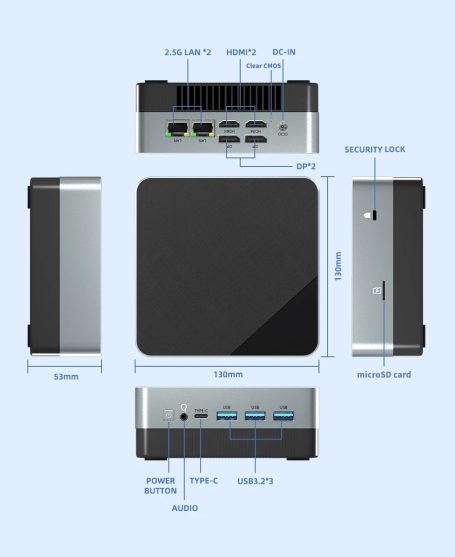

I/O Ports
- Front:
- 3 × USB 3.2
- 1 × USB-C
- 1 × 3.5 mm Audio
- Side:
- 1 × microSD Card Slot
- 1 × Security Lock
- Rear:
- 2 × RJ-45 (2.5G LAN)
- 2 × HDMI 2.0
- 2 × DisplayPort 1.4
- 1 × DC-IN
- 1 × Clear CMOS
Dimensions & Weight
- 130 mm × 130 mm × 53 mm
- 1.05 lbs
Operating System
- Windows 11 Pro
Power Supply
- DC 19V (5.5 × 2.5 mm connector)
GA01-550
Mini PC
CPU : AMD Ryzen 7 5825U (1.9Ghz~4.4Ghz,8 Core 16 Thread)
Graphics : AMD Radeon Graphics 8 core 2000 MHz
Memory: DDR4 SO-DIMM x2 3200M : 8GB,16GB,32GB
Storage : NVME(PCIe) : 128GB,256GB,512GB ,1TB,2TB
WLAN : Wi-Fi 6E (802.11ax) Bluetooth 5.2
Interface :
1 x DC Jack; 2 x USB3.0; 2 x USB2.0; 1 x RJ-45; 2 x HDMI; 1 x Audio Jack (HP&MIC); 1 x Type-C;
1 x Internal Connector : M.2 NVME SSD 2280; 1 x SATA HDD (2.5in /7mm); 1 x RTC Button; 1 x Power LED
O/S : Support Windows, Ubuntu
Power Adapter : 19V/3.42A 65W
Input: 100-240V AC, 50/60Hz , Output: 19V 3.42A
Work Environment : -10°C--45°C，30%--90% Humidity
Storage Environment : -20°C--60°C，10%--90% Humidity
Accessories : Wall-Mounted bracket, HDMI Cable 20cm
Additional function : WOL; AUTO POWER ON
Dimension : 126*112.8*40mm
Weight : Only Device 0.365 kg; With Accessories 0.945 kg

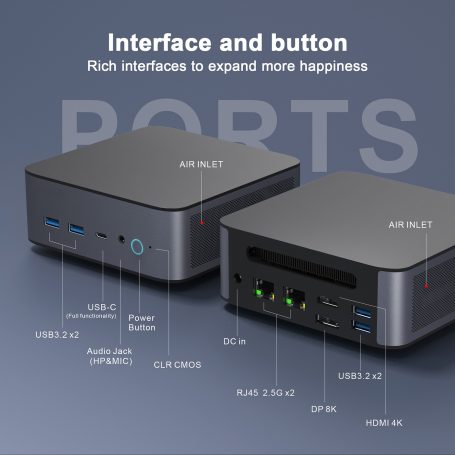

GT01-760 & 790
Mini PC
CPU:
11th Generation Intel® Core™ i7-11390H
(12M Cache, up to 5.0 GHz)
Graphics: Intel Iris® Xe graphics card 1.40 GHz
Memory: DDR4 SO-DIMM x2: DDR4-3200 16GB or 32GB
Storage SSD NVME: NVME(PCIe) 512GB or 1TB
Wireless LAN:
WIFI 6 802.11 a/b/g/n/ax 2x2，2.4G+5.8G, BT5.0
Interface: DC Jack*1
USB3.2*4
RJ45 2.5G*2
HDMI 4K*1
DP 8K*1
Audio Jack (HP&MIC)*1
Type-C Thunderbolt™ 4*1
Internal Connector:
M.2 NVME SSD 2280*1
SATA HDD（2.5in 7MM)*1
RTC Button: 1
Power LED: 1
Power Button : 1
compatible OS: support windows, Ubuntu
Adapter :19V/3.42A 65W Certification; Input: 100-240V AC, 50/60Hz , Output: 19V 3.42A
Work Environment: -10°C--45°C，30%--90% Humidity
Storage Environment: -20°C--60°C，10%--90% Humidity
Accessories: HDMI 80CM&20CM; Adapter19V 3.42A
Additional function: WOL; AUTO POWER ON

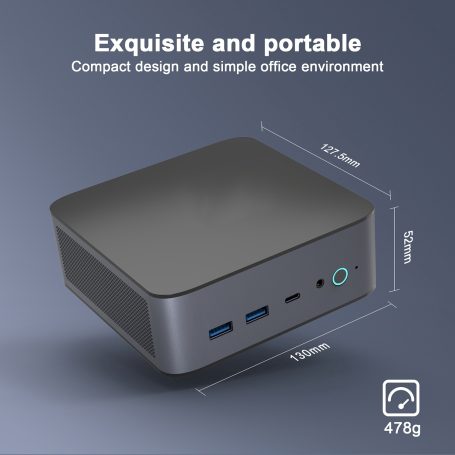

Dimension: 130*127.5*52mm
Weight: Only Device 0.478 kg ;With Accessories 1.08 kg
